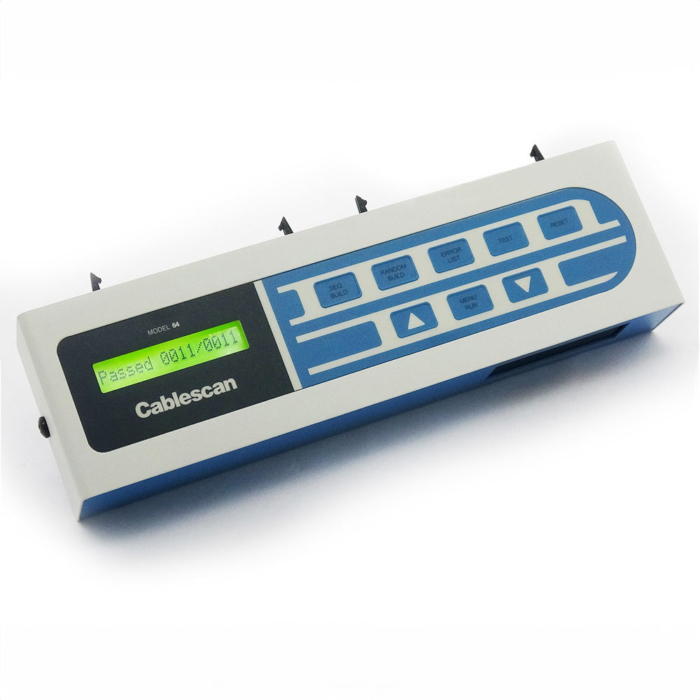

Model 64×2

Model 64×2

– Available in 110V and 220V
– Appropriate for Jobs of 128 Test Points or Less
– User-friendly Control Panel
– Program by Learn-From-Known-Good Harness
– Signature Codes
– User Label Capability
– Program Storage Expandable by Plug-in cartridge
– Automatic Test Scanning and Results
– Loop Test
– Assembly Aid – Sequential or Random
– PC Interface (PC Optional)
– Wire List Import/Export
– PC Software Available

Available in 110V and 220V which can be seen at dropdown below.

SKU: N/A Category:

Description

Model 64X2 Specs

TEST POINT CAPACITY

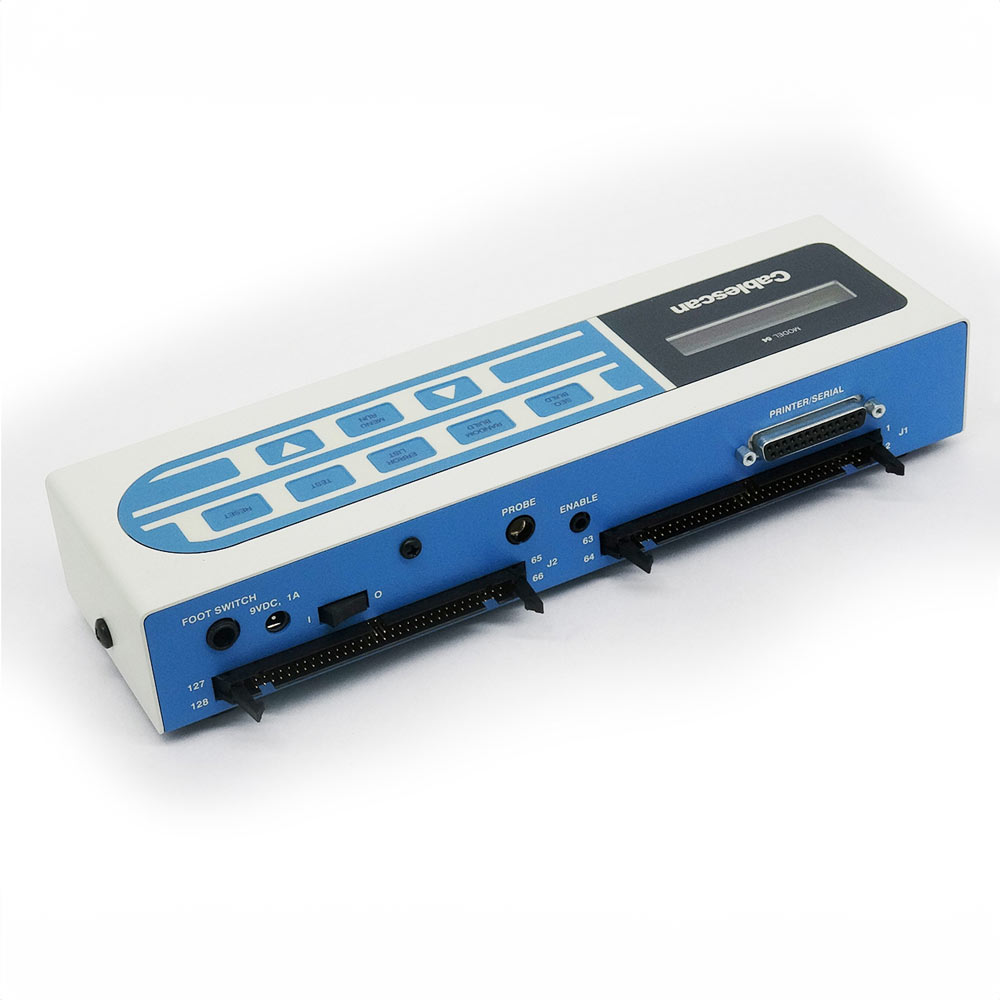

128 points, two 64-pin header

OPERATING SPEED
Test:  < 0.5 sec.;  Self Test: < 2 sec.;  Learn: < 0.5 sec.

TEST PARAMETERS
Short Threshold: < 100 Ω
Open Threshold: > 1,000 Ω
Continuity Threshold: < 100 Ω
Test Current: < 3 ma
Body Current: < 5 µa

TEST VOLTAGE
10 vdc, max.

INTERWIRE CAPACITANCE
.01 mf, max.

DISPLAY
16-character alphanumeric LCD
6-character test point labels

PROGRAM STORAGE
Internal Memory:  8 program locations without test point labels or 2 program locations with test point labels.
Removable Memory:  16 program locations without test point labels, or 4 program locations with test point labels.

BATTERY LIFE
5 years

POWER REQUIREMENTS
104 to 126 V~, 50/60 Hz or
208 to 252 V~, 50/60 Hz (Power Pack change)

TEMPERATURE
Operating: 32 to 105 °F  (0 to 40 °C)
Storage: -40 to 165 °F  (-40 to 74 °C)

DIMENSIONS
11 in. x 3.2 in. x 1.75 in. (27.9 cm x 8.1 cm x 4.4 cm)

WEIGHT
2.5 pounds (1.1 kg)

Additional information

Options

110V, 220V
