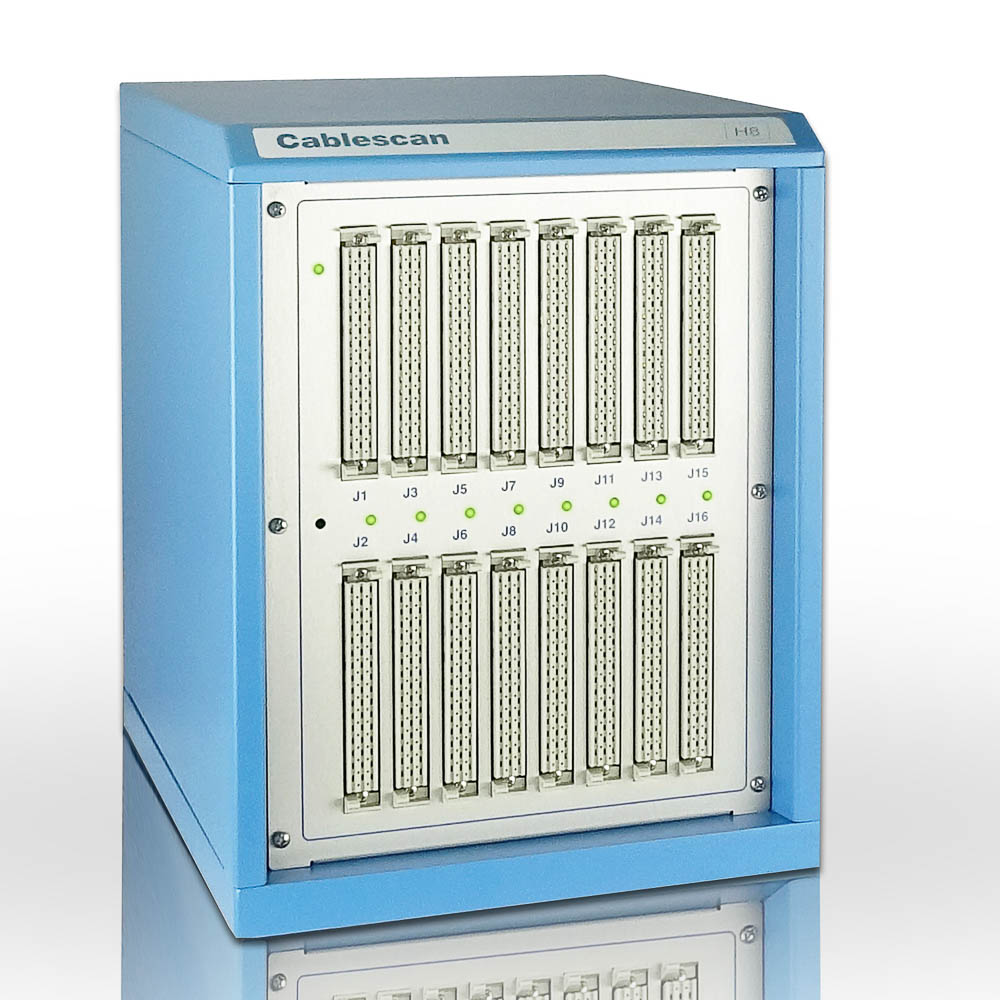

Cablescan H8

Cablescan H8

– Expandable to 512 test points.
– Programmable Options/Parameters.
– Programmable build methods.
– Graphical build instructions.
– Component measurement.

The Cablescan H8 provide the PC-based power of the larger PC based testers, but in an economical package for users who do not require more than 512 test points. This analyzer is designed to operate under the control of your PC.

The Cablescan H8 is a high-voltage system expandable from 64 to 512 test points. This tester is expandable in 64-point increments.

This analyzer provide you with all the test and build capabilities of the Cablescan H23, without built-in PC controllers. This analyzer is supplied with software to run on most Windows-based computers, interconnected through their USB or serial ports.



SKU: 5211072-01 Category:

Description

PC Based Testers Introduction High Voltage

The PC based analyzers provide high-speed testing for wire harnesses, backplanes, and printed-circuit boards. They provide diode testing, resistance, and capacitance measurements, and build aids. They have a broad range of test applications from simple wire harnesses to prescreening of loaded circuit boards. The analyzer consists of a PC based System Controller, with Keyboard, Mouse, Monitor, and one or more expansion cabinets housing scanner boards.
All PC based analyzers have an extensive assortment of programmable options to allow customizing of tester operations, test results printing, and test results storage and evaluation using a statistical report system.

A tester can have up to 32 expansion cabinets. The System Controller and each expansion Cabinet can be separated by up to several hundred feet, for applications requiring interconnects spread over a large area, as in testing aircraft and shipboard cabling.

Test programs are created internally using the keyboard and a specialized wire list editor, or obtained externally by learning (scanning) a completed assembly, or importing wire list in Excel format. Test programs written for one version of PC based testers can be run on any other version simply by changing the test voltage and isolation settings. Operator use is enhanced by a menu-driven user interface.

TEST FEATURES
·         Component measurements
·         Programmable thresholds
·         Programmable test methods
·         Wire list programming
·         Statistical data reporting

COMPONENT MEASUREMENTS
The PC based analyzers can be programmed through the keyboard and built-in editor to define component values and tolerances for circuits containing resistors, capacitors, and diodes. Additionally, diode and capacitor polarities can be defined, as well as diode forward voltage drops.

PROGRAMMABLE THRESHOLDS
Continuity and isolation (shorts) thresholds can be programmed and are stored with the test programs.

PROGRAMMABLE TEST METHODS
The PC based tester performs tests in a variety of methods: continuity, opens, and shorts tests are individually selectable. A single test scan or continuous scans may be performed. There are three selectable formats for displaying test results: display the value of each circuit and component tested; display only the failed circuits and components; display just the final pass/fail status. Passwords can be programmed to control access to high voltage testing. Complete test results may be printed, or a pass/fail label may be printed.

WIRE LIST PROGRAMMING
Test programs can be generated by scanning known-good assemblies. A full-function program editor provides wire list programming through the keyboard when a known-good assembly is not available. The program editor is also used for programming components, changing test parameters and options, editing existing programs, or assigning circuit labels.

STATISTICAL DATA REPORTING
Test results may be serialized and stored for use in generating test summary reports. Build times may also be saved for use in creating reports comparing assembly times against standards.
BUILD FEATURES
·         Body conductance
·         Programmable build methods
·         Shorts testing
·         Graphical Operator Instructions
·         Last-circuit retest

BODY CONDUCTANCE
Body conductance is used during harness build to locate and identify points by touch. Audio as well as visual outputs indicate when the correct point is touched.

PROGRAMMABLE BUILD METHODS
During harness build, the PC based testers verify each circuit as it is terminated. It can operate in a predetermined build sequence or allow terminations at random. The build method can be programmed to switch automatically between sequential and random. The wire list may also be grouped to allow a section to be routed without terminating. Once the section is routed the tester verifies each circuit as it is terminated.

SHORTS TESTING
The PC based testers verifies that the circuit being terminated is not shorted to another circuit (normally occurring when a wire is inserted incorrectly.)

GRAPHICS
Graphics and text displays during assembly provide detailed work instructions.

LAST-CIRCUIT RETEST
The PC based testers can be set to retest the previously terminated circuit for continuity. If that circuit becomes unterminated, the tester automatically backs up, allowing retermination. This feature prevents the tester from permanently advancing and displaying the next circuit while the immediate circuit makes only temporary contact with the terminating point. Connector pins that back out after the operator releases the wire will also cause the tester to back up.

PROGRAMMABLE OPTIONS AND PARAMETERS

TEST OPTIONS
·         Shorts test unused points
·         Display errors only
·         Display all circuit values
·         Store test results electronicky
·         Print test results
·         Scan serial number labels
·         Print product label
·         Pause after each error or page
·         Activate output signal and delay
·         Log test data
·         Serialize test results
·         Assign job/batch number

BUILD OPTIONS
·         Build sequentially or randomly
·         Route sequentially or randomly
·         Test after build is complete
·         Monitor last continuity
·         Perform shorts test during build
·         Allow manual sequence override
·         Log build times
·         Display graphical instructions
·         Display work instructions
·         Activate relay/lamp drivers
·         Run a test at a sequence step

PROGRAMMABLE PARAMETERS
·         Continuity threshold
·         Continuity current
·         Continuity voltage
·         Continuity dwell time
·         Number of relay/lamp drivers
·         Isolation threshold
·         Isolation voltage
·         Isolation voltage ramp up
·         Isolation voltage ramp down
·         Isolation dwell time

Specs

Cablescan H8 Specs

TEST POINT CAPACITY
Up to 512 test points

CONTINUITY RANGE
2 wire test:100 mΩ to 50 kΩ
4 wire test:10 mΩ to 50 kΩ

CURRENT RANGE
512 nA to 1.0 A

ISOLATION
(Shorts Threshold)
10Ω to 9.5MΩ @ 5 VDC
500 kΩ to 1.0 GΩ *
(* depends on test voltage)

CONTINUITY TEST VOLTAGE
5 VDC or 200 mVDC

ISOLATION TEST VOLTAGE
5 VDC to 1500 VDC or 200 mVDC

RAMP UP SPEED
40 V/second to 10 kV/second

RAMP DOWN SPEED
160 V/second to 40 kV/second

RESISTANCE TEST
1.11 Ω to 8.64 MΩ (± 10%± 1Ω)

CAPACITANCE TEST
1.11 nF to 9.09 mF (± 20%)

DIODE TEST
Voltage drop 55.6 mV to 4.36 V (±10%)

DWELL TIME
Auto or Programmable: from 1µs to 1 minute

TEST SPEED
Continuity: 500 points/sec
Component: 50 points/sec
High Current: 20 points/sec
Isolation: 20 points/second*
(* plus dwell & ramp-up time)

BODY CONDUCTANCE
Less than 10 µA

LAMP/RELAY DRIVERS
Scanner boards can be assigned to drive lamps and relays.
Up to 1 A @ 5 VDC per point

INPUT POWER
100 to 252 V~, 1 A, 50/60 Hz.

TEMPERATURE
Operating: 32 to 105 °F (0 to 40 °C)
Storage: -40 to 165 °F (-40 to 74 °C)

RELATIVE HUMIDITY
Operating: 30% to 60%
Storage: 30% to 70%

DIMENSIONS/WEIGHT

(Height x Width x Depth)

12.75 x 9.75 x 12.25 inches
(32.4 x 24.8 x 31.1 cm)
18 lbs. (8.2 kg) plus
1.5 lb. (0.68kg) per 64 points
